HOME > PRODUCTS CENTER > EN 1092-1 TYPE 02 LOOSE FLANGE
EN 1092-1 TYPE 02 LOOSE FLANGE
Print The Page
EN1092-1/02 PN6 PN10 PN16 LAPPED FLANGE
FLAT FACE (FF)
Shandong Hyupshin Flanges Co., Ltd, Flanges Manufacturer, Exporter, DIN2642 PN10 Flanges
Shandong Hyupshin Flanges Co., Ltd, Flanges Manufacturer, Exporter, DIN2642 PN10 Flanges

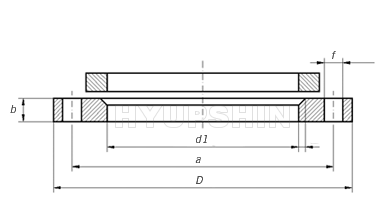

Flange Dimensions & Approximate Masses / Flange's Weight
EN 1092-1 TYPE 02 PN10 LOOSE FLANGE
Rated Diameter Flange Screws Weight
(7,85 Kg/dm3)
d1 k D b e d2 Thread Bolt holes KG
15 25 65 95 14 3 14 M12 4 0,654
20 31 75 105 16 4 14 M12 4 0,913
25 38 85 115 16 4 14 M12 4 1,081
32 47 100 140 18 5 18 M16 4 1,781
40 53 110 150 18 5 18 M16 4 2,035
50 65 125 165 20 5 18 M16 8 2,520
65 81 145 185 20 6 18 M16 8 3,050
80 94 160 200 20 6 18 M16 8 3,480
100 120 180 220 22 6 18 M16 8 4,200
125 145 210 250 22 6 18 M16 8 5,210
150 174 240 285 24 6 22 M20 8 6,890
200 226 295 340 24 6 22 M20 8 8.870
250 281 350 395 26 8 22 M20 12 11,200
300 333 400 445 26 8 22 M20 12 12,800
350 365 460 505 30 8 22 M20 16 19,400
400 416 515 565 32 8 26 M24 16 26,400
450 467 565 615 36 8 26 M24 20 32,200
500 519 620 670 38 8 26 M24 20 38,500
600 622 725 780 42 8 30 M27 20 52,200
700 721 840 895 50 8 30 M27 24 79,400
800 824 950 1015 56 8 33 M30 24 112,000
900 926 1050 1115 62 8 33 M30 28 135,000
1000 1028 1160 1230 70 8 36 M33 28 180,000
1. SURFACE FINISH FACING TYPES A, B1, B2 etc
2. FLANGE MARKING: LOGO EN 1092-1 / 02 / DN100 / PN6 / P245GH / HEAT NUMBER

EN 1092-1 TYPE 02 PN16 LOOSE FLANGE
Rated Diameter Flange Screws Weight
(7,85 Kg/dm3)
d1 k D b e d2 Thread Bolt holes KG
15 25 65 95 14 3 14 M12 4 0,655
20 31 75 105 16 4 14 M12 4 0,913
25 38 85 115 16 4 14 M12 4 1,081
32 47 100 140 18 5 18 M16 4 1,781
40 53 110 150 18 5 18 M16 4 2,035
50 65 125 165 20 5 18 M16 4 2,668
65 81 145 185 20 6 18 M16 4 3,241
80 94 160 200 20 6 18 M16 8 3,512
100 120 180 220 22 6 18 M16 8 4,247
125 145 210 250 22 6 18 M16 8 5,258
150 174 240 285 24 6 22 M20 8 6,945
200 226 295 340 26 6 22 M20 12 9,383
250 281 355 405 29 8 26 M24 12 13,717
300 333 410 460 32 8 26 M24 12 18,213
350 365 470 520 35 8 26 M24 16 27,184
400 416 525 580 38 8 30 M27 16 34,789
450 467 585 640 42 8 30 M27 20 44,793
500 519 650 715 46 8 33 M30 20 62,227
600 622 770 840 55 8 36 M33 20 98,983
700 721 840 910 63 8 36 M33 24 107,32
800 824 950 1025 74 8 39 M36 24 152,44
900 926 1050 1125 82 8 39 M36 28 184,25
1000 1030 1170 1255 90 8 42 M39 28 257,09
1. SURFACE FINISH FACING TYPES A, B1, B2 etc
2. FLANGE MARKING: LOGO EN 1092-1 / 02 / DN100 / PN16 / P245GH / HEAT NUMBER
Certificates
ISO9001-2015 TUV Rheinland for flanges manufacturing and sales
CE PED 2014/68/EU, AD2000 W0 W0, for quality assurance for flanges manufacturer of materials
CE PED 2014/68/EU, AD2000 W0 W9
ISO9001:2015
UKCA PER 2016

Production Capacity & Purchase Details
1. Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.
2. Material Carbon Steel: P235GH, P245GH, P250GH, RST37.2, C22.8, S235JR, ST37, ASTM A105
3. Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4. Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5. Monthly Output: 3000 tons per Month.
6. Delivery Terms: CIF, CFR, FOB, EXW.
7. Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8. Minimum Order Quantity: 1Ton or 100Pcs.
9. Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
10. Find More Requirements In Flanges Market.



EN1092-1 TYPE 02 FLANGES
