HOME > PRODUCTS CENTER > AWWA C207 CLASS E HUB FLANGE
AWWA C207 CLASS E SLIP ON HUB FLANGE
Print The Page
275 PSI FLANGE
Shandong Hyupshin Flanges Co., Ltd, Manufacturer, AWWA C207 Class E Hub Flanges

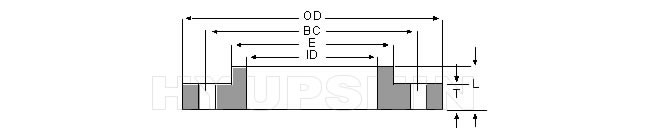

Flange Dimensions & Approximate Masses
Nom Size

OD


Dia at Base

Bore
Drilling

Weight
Thickness
Overall Thickness
Bolt Circle
Hole Dia
No. Holes
A
L
E
B
C



4
9.00
0.938
1.312
5.312
4.57
7.50
0.750
8
13
5
10.00
0.938
1.438
6.438
5.66
8.50
0.875
8
14
6
11.00
1.000
1.562
7.562
6.72
9.50
0.875
8
17
8
13.50
1.125
1.750
9.688
8.72
11.75
0.875
8
28
10
16.00
1.188
1.938
12.000
10.88
14.25
1.000
12
37
12
19.00
1.250
2.188
14.375
12.88
17.00
1.000
12
59
14
21.00
1.375
2.250
15.750
14.19
18.75
1.125
12
78
16
23.50
1.438
2.500
18.000
16.19
21.25
1.125
16
101
18
25.00
1.562
2.688
19.875
18.19
22.75
1.250
16
110
20
27.50
1.688
2.875
22.000
20.19
25.00
1.250
20
139
22
29.50
1.812
3.125
24.000
22.19
27.25
1.375
20
162
24
32.00
1.875
3.250
26.125
24.19
29.50
1.375
20
197
26
34.25
2.000
3.375
28.500
26.19
31.75
1.375
24
235
28
36.50
2.062
3.438
30.750
28.19
34.00
1.375
28
269
30
38.75
2.125
3.500
32.750
30.19
36.00
1.375
28
303
32
41.75
2.250
3.625
35.000
32.19
38.50
1.625
28
375
34
43.75
2.312
3.688
37.000
34.19
40.50
1.625
32
401
36
46.00
2.375
3.750
39.250
36.19
42.75
1.625
32
452
38
48.75
2.375
3.750
41.750
38.19
45.25
1.625
32
528
40
50.75
2.500
3.875
43.750
40.19
47.25
1.625
36
573
42
53.00
2.625
4.000
46.000
42.19
49.50
1.625
36
648
44
55.25
2.625
4.000
48.000
44.19
51.75
1.625
40
688
46
57.25
2.688
4.062
50.000
46.19
53.75
1.625
40
733
48
59.50
2.750
4.125
52.250
48.19
56.00
1.625
44
799
50
61.75
2.750
4.125
54.250
50.19
58.25
1.875
44
827
52
64.00
2.875
4.250
56.500
52.19
60.50
1.875
44
922
54
66.25
3.000
4.375
58.750
54.19
62.75
1.875
44
1024
60
73.00
3.125
4.500
65.250
60.19
69.25
1.875
52
1253
66
80.00
3.375
4.875
71.500
66.19
76.00
1.875
52
1623
72
86.50
3.500
5.000
78.500
72.19
82.50
1.875
60
1922
78
93.00
3.875
5.375
84.500
78.19
89.00
2.125
64
2279
84
99.75
3.875
5.375
90.500
84.19
95.50
2.125
64
2586
90
106.50
4.250
5.750
96.750
90.19
102.00
2.438
68
3061
96
113.25
4.250
5.750
102.750
96.19
108.50
2.438
68
3432
Dimensions are in inches.  Weights are in pounds.
Note:  Hub flanges are to be used on pipe that has an OD equal to the nominal pipe size in the first column.
*Pressure rating at atmospheric temperature is 275 psi.  These flanges have the same OD and drilling as ANSI/ASME B16.1 class 125 cast-iron flanges.  In sizes 24in. and smaller, they also match ANSI/ASME B16.5 class 150 standard for steel flanges.  The thickness of a class 150 flange from which the raised face has been removed shall be no less than dimension T minus 0.06 in.
Production Capacity & Purchase Details
1. Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.
2. Material Carbon Steel: ASTM A105, A181, A350 LF1, A350LF2, A350LF3, A36, A234 WPB, Q235B, 20#, 20Mn etc.
3. Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4. Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5. Monthly Output: 3000 tons per Month.
6. Delivery Terms: CIF, CFR, FOB, EXW.
7. Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8. Minimum Order Quantity: 1Ton or 100Pcs.
9. Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
